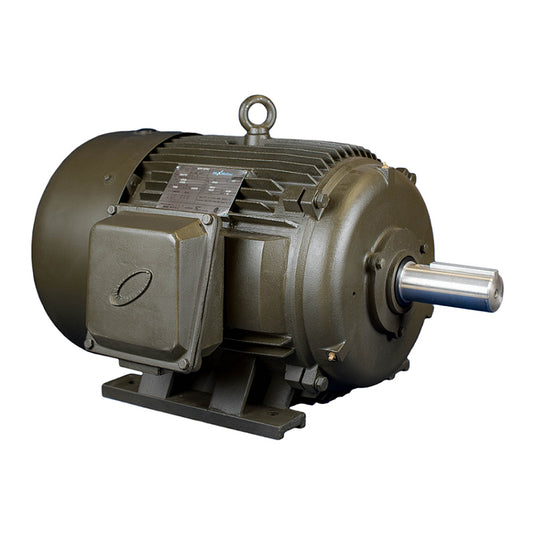

40 HP MAX MOTION MQP-57
General purpose use on conveyors, compressors, pumps, fans, blowers and other industrial and process machinery working in wet and dirty environments. Max Motion premium high efficiency motors offer even more return on your investment when used in high cycling and long running time applications.
- Design - NEMA standard MG-1, Design B Meets MG-1 Part 31
- Service Factor - 1.25 SF 1HP to 50HP, 1.15 SF 60HP to 300HP.
- Highest Quality Enamel coated Corona resistant inverter duty magnet wire. Bearing lubricant –
- Totally Enclosed Fan Cooled meeting IEC standard IP55
- Factory Certified Division 2 Class I Groups A, B, C, D Class II Groups F, G. Meets Temp Code T2B.
- Inverter Duty ranges of 10:1 constant torque and 20:1 variable torque.
- Warranty - 30 months from installation or 36 months from shipment whichever is first.
- 40 HP, 1780 RPM
- 208-230V / 460V
- 324T Frame, TEFC Enclosure
- Cast Iron Body Material
